Table Data Manager

For convenient work with tabular data from external sources, a new widget has been added to CAE Fidesys 8.0, which allows you to upload files in *.csv, *.txt formats and perform modification operations with them for further use in modeling. List of available operations:

• Deleting text headers;
• Column division;
• Shifting the table data along the axes;
• Multiplying table data by a factor;
• Rotating data in Cartesian space by an angle;
• Reflection of data relative to axes.

To launch the tabular data manager, click on the Table Data Manager button on the toolbar.

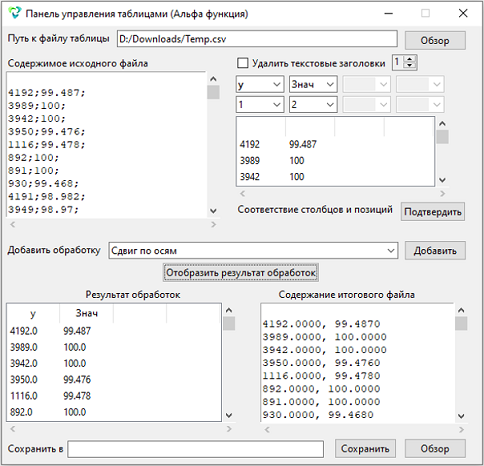

As a result, a widget will appear in which you can view the results of the treatments:
