Sloshingfree Surface

To create free surface boundary conditions:

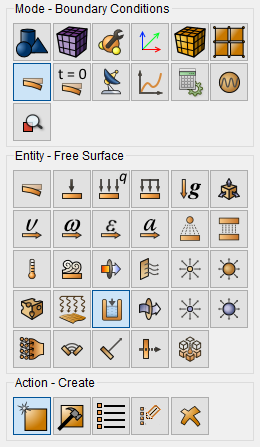

On the Command Bar, select Mode - Boundary Conditions, Entity - Free Surface.
Select Action - Create.
Optionally, specify a name for the boundary condition and specify the entity for which the free surface is applied.
Click Apply.

These interactive operations correspond to the following commands:

[create] sloshing [name <name>] [<id>] [{add|on} {curve|edge|face|sideset|surface|tri} {[[id] {[<id>] [(<id range start> to <id range finish>)...]}...] [all] [except {[<except id>] [(<except id range start> to <except id range finish>)...]}...]}]

For example, to set the Sloshingfree Surface to surface 1, you can specify on the command line:

create sloshing on surface 1

Types of Loadable Entities

A sloshingfree surface can be applied to:

surfaces;
triangles;
quadrilaterals;
edges;
sets of sides.
