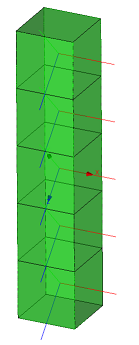

The local coordinate system of volumetric elements is displayed at the center of the element. For a Cartesian block CS, the axes of the element's local CS are obtained by projecting the x-axis of the block's coordinate system onto the element.

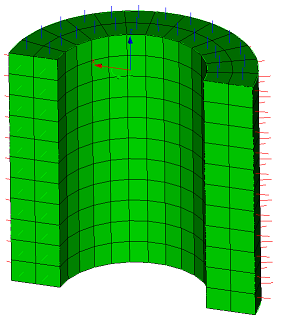

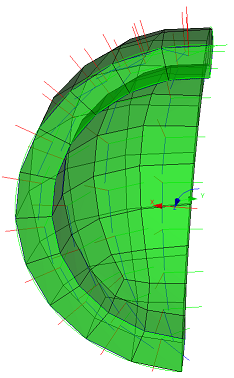

The orientation of the axes is determined by the block's coordinate system, which can be Cartesian, cylindrical, or spherical.
