Applies to: Volumes.
Summary: A voxel mesh will be create fora volume.
Settings: Command Panel, Mode - Mesh, Entity - Volume, Action - Mesh, Voxel.
Syntax:
voxelmeshx [y ] [z ] [use_api]
Where,
x, y, z - voxel sizes;
use_api - a parameter indicating the use of api during grid generation (set by default).
When constructing a voxel mesh, a block is created for each layer, to which a material must be assigned in the future.
Discussion: The word voxel is derived from the word VOLume and the abbreviation piXEL (pixel stands for PICture'SELement, image element). That is, it is translated as “element of the volumetric image” or “element of the volume of the image”. A voxel is an element of a three-dimensional image. An analogue of a hexagonal mesh.

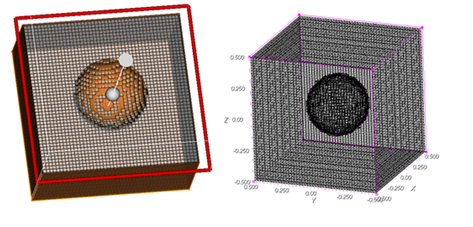

Voxel mesh examples:
